get tree table cell value
Retrieve the contents of a cell in a tree table or tree list.
| Name | Description | Type | Modifier |
|---|---|---|---|
| window | TA name of the window. | Interface Entity | None |
| tree | TA name of the tree table or tree list | Interface Element | None |
| node path | Path to the node (Support index). | String | None |
| column | Column number of the cell (Column numbers start at 1). | String | None |
| variable | (Optional) Variable to receive the returned value. | String | None |
The contents of a cell in a tree table or tree list.
This action may be used within the following project items: test modules and user-defined actions.
This action is applicable to the following controls: Tree table, tree list.

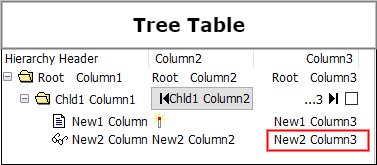

Example 1
window tree node path column variable
get tree table cell value SAP SAP-TreeTable Root Column1/Chld1 Column1/New2 Column1 3 s1

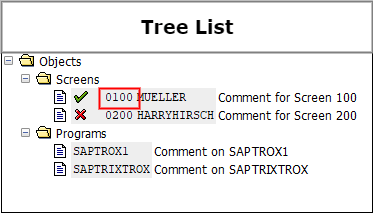

Example 2
window tree node path column variable
get tree table cell value SAP SAP-TreeList Objects/Screens/|0100|MUELLER|Comment for Screen 100 2 s2
- variable argument:
- If the variable in argument variable has not been declared, the action creates it as a global.
- If the variable argument is left empty, TestArchitect supplies a global variable with the name _result.
- This action supports the <ignore> modifier. If the string
<ignore>is present as the value of any of the arguments, or any argument contains an expression that evaluates to<ignore>, the action is skipped during execution. - Applicable Version: TestArchitect version 8.5 onward.
